Stopping a phone-call translator from translating its own echo

The first phone prototype translated itself

The translation path worked in a browser, but the phone network changed the problem. Web and mobile voice systems can assume wideband audio and client-side acoustic echo cancellation. An ordinary telephone call delivers narrowband G.711 μ-law audio at 8 kHz, variable network delay and no control over the recipient’s device.

Translated speech played to the phone can return through the network, enter recognition again and trigger a self-reinforcing translation loop. In the ungated prototype, eight of ten test calls looped until they were manually interrupted.

The fix started by separating the two directions

Separating the caller and callee directions prevents prompt, context and audio state from contaminating the opposite side of the conversation.

The place left over, once you own neither the handset nor the network

Bidirectional speech translation is not new, and neither is doing it on a phone. The implementations that work well get there by controlling something this project does not have. A device-level implementation cancels echo in hardware because it owns the microphone. A carrier implementation intervenes inside the network itself. Both are correct engineering, and both are closed to a team with neither asset.

What is left is a server relay, which is the awkward middle. It sees the audio only after the network has already degraded it, it cannot touch the recipient's device, and it has to solve echo in software or not at all. It is also the arrangement this project needed, because the constraint that shaped everything was that the person being called installs nothing.

Our cleanest idea did not survive the phone network

A Pearson-correlation detector compared outgoing synthesized audio with incoming PSTN audio. μ-law quantization, variable delay and codec distortion destroyed the stable signal relationship it required.

Correlation reduced looping from 8/10 to 3/10 calls but introduced false positives. The deployed design instead marks the time window in which echo is possible and injects valid silence while maintaining stream continuity.

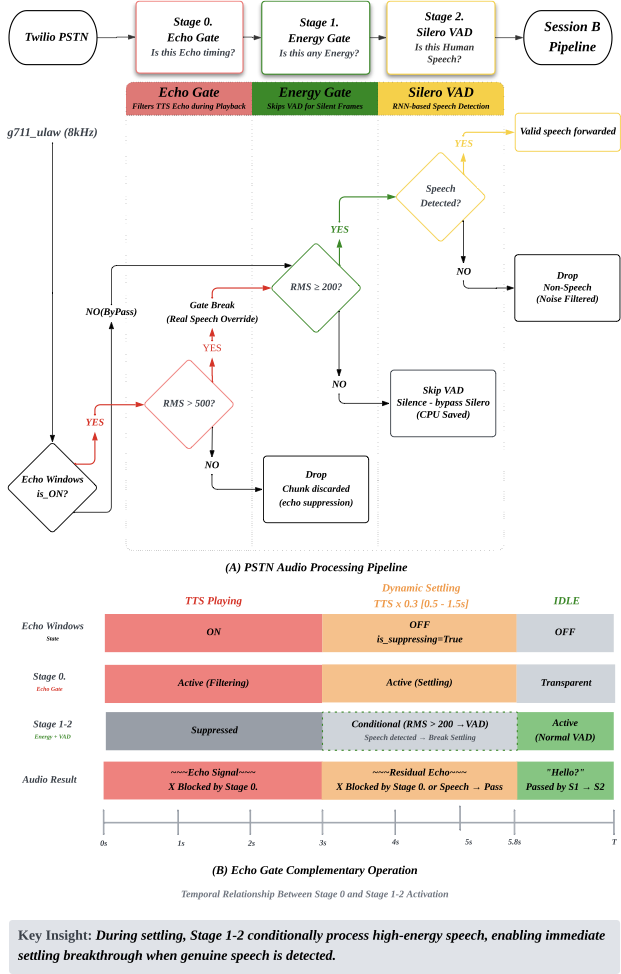

Three echo gates failed before the one that shipped

The deployed gate is the fourth design. The three before it each failed in a way that pointed at the same underlying rule.

The hosted detector assumed audio the phone network does not carry

Server-side voice activity detection is tuned for clean wideband input. On PSTN, steady background noise sits inside the range it reads as speech, so the end-of-turn event arrived tens of seconds late or never arrived at all. Tuning the energy threshold did not converge: no single value separated speech from line noise across calls.

The detector moved on-device instead, which made the decision inspectable frame by frame and let the gate above it stay authoritative. Onset and offset are deliberately asymmetric, because the cost of the two errors is not symmetric: clipping the start of a sentence is worse than holding the line open a moment too long.

• 01Energy gate first, with a higher threshold inside the echo window than outside it.
• 02A local neural detector second, on 8 kHz audio upsampled to the rate it expects.
• 03Asymmetric hysteresis: a short onset to catch the first syllable, a long offset to survive a pause mid-sentence.
• 04A minimum utterance length and a minimum peak, so a weak fragment is rejected as noise rather than sent for recognition.

Asking one model to hear and to translate produced sentences nobody said

The realtime speech API can transcribe and translate in one pass, and doing that added content the speaker had not produced. Not mishearing: fluent, plausible additions that fit the conversation and were never said.

The two jobs are now separate. Recognition stays inside the realtime session, and translation runs as a discrete text call at temperature zero against the transcript, with the realtime session's own translation path switched off by configuration rather than left unused.

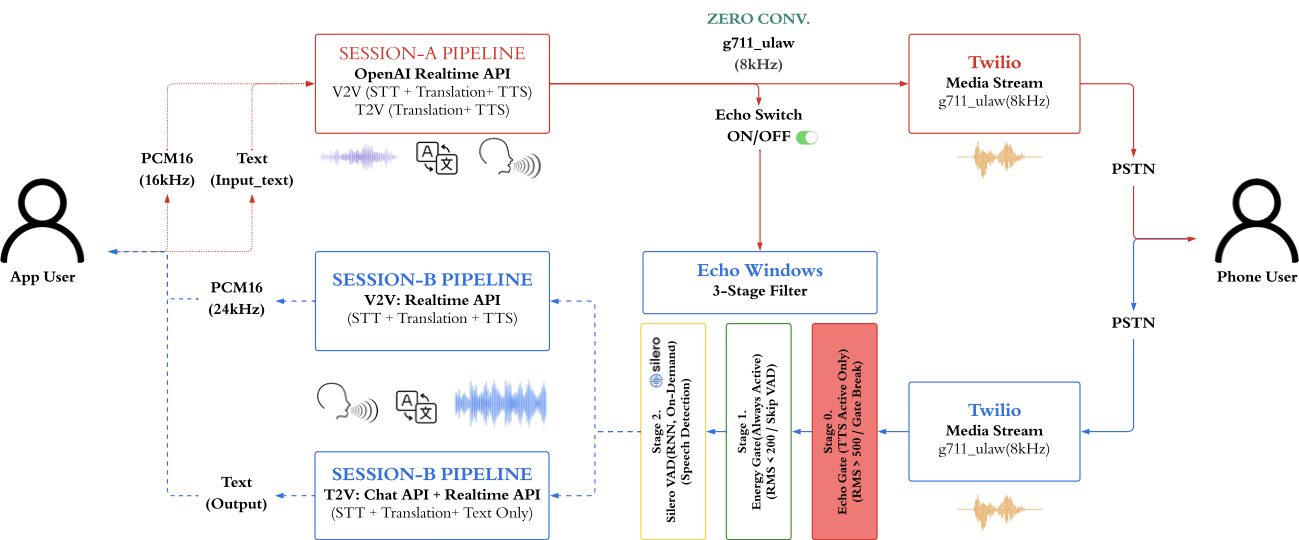

The architecture diagram in Architecture, above, predates that change and still shows the realtime session handling translation on the voice-to-voice path. The deployed arrangement is the one described here.

The recognizer invented a news anchor, and it reached a real phone

Feed line noise to a speech recognizer trained on broadcast and video audio and it does not return nothing. It returns something plausible from that distribution: a station ident, a sign-off, a subscribe prompt. In production, one such phrase passed through translation and was spoken to a recipient. Nothing upstream was wrong; the recognizer had simply been handed noise and answered confidently.

The fix is layered, and the ordering matters. The cheapest layer is not to hand the recognizer noise in the first place, which is what the gates above already do. What survives that is caught by pattern, and what survives pattern matching is caught after translation, where the cost of a false positive is a short delay rather than a wrong sentence in someone's ear.

One relay, three conversations

The echo problem is shared. What differs is who is speaking, and that turned out to be the axis worth building around.

The three share the echo-gating logic through one component rather than reimplementing it, which is what made the second and third modes cheap to add. An earlier single-object router that switched on mode internally was the thing that had to go first.

The text-to-voice path is not a lesser mode. In the field study it was the most used of the three, which was not what the design assumed at the start.

What the field study cost, and which mode people actually used

USD 0.28 per minute on the evaluated provider stack, over the reported call set. That figure covers one provider configuration and one pricing period, and it is the number the paper reports rather than a current quote.

Cost is not incidental to this design. A relay pays for two directional sessions plus telephony minutes for the whole call, including the stretches where nobody is speaking, which is why the gates that suppress noise before recognition are a cost control as much as a quality one.

Then we took it through 155 Korean-English calls

The evaluation contains 155 calls, 148 instrumented calls and 147 completed calls across voice-to-voice, text-to-voice and full-agent modes.

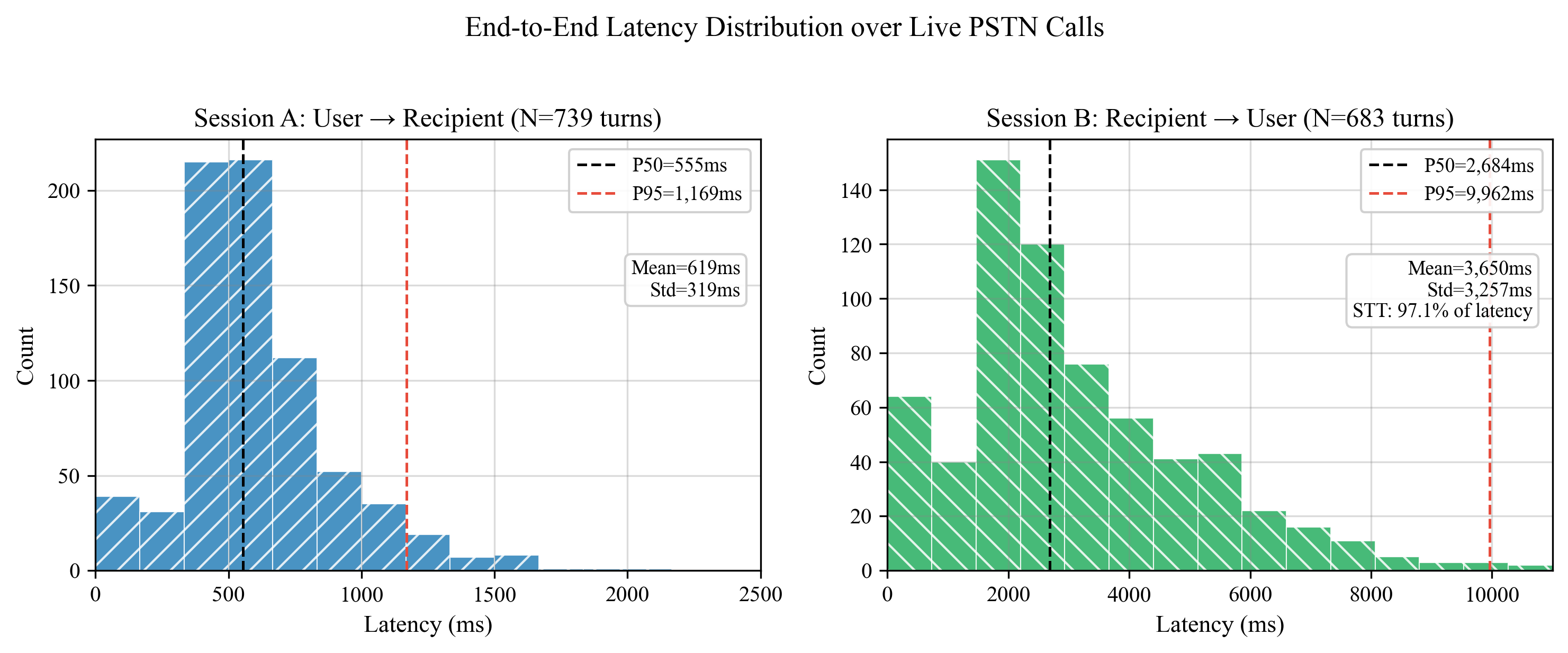

• 01STT accounts for 97.1% of mean Session B latency.
• 02The gate activated 1,046 times while preserving 354 callee interruptions.
• 03277 VAD false triggers were observed and 100 hallucinated transcriptions were blocked.
• 04COMET semantic adequacy reached 0.7078 for English→Korean and 0.6242 for Korean→English against offline LLM references.

Questions from ACL and IWSLT

WIGVO was presented at ACL 2026 System Demonstrations in San Diego through a booth focused on the paper, architecture and recorded workflow.

The most useful part of the booth was the technical discussion. Researchers and engineers, including visitors from NVIDIA and Apple, asked about echo control on a real line, end-to-end latency and whether the architecture could run inside their own infrastructure.

We treat those conversations as qualitative feedback, not product adoption or company endorsement. They did, however, show that the difficult parts documented in the paper were the same parts practitioners wanted to examine.

The discussion continued at IWSLT 2026 through an invited oral talk and a poster session. Those sessions gave us more room to explain why the phone-originating path remains ASR-bound and why deterministic echo gating outperformed a more elaborate detector.
